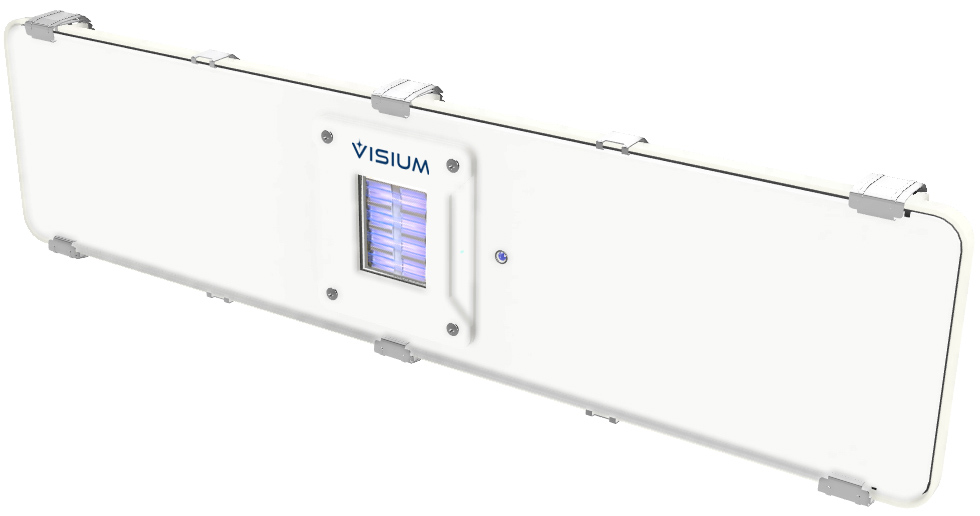

Apex Far-UVC
Rugged, Sealed Fixtures for Demanding Environments
Apex is Visium’s industrial-grade Far-UVC fixture, purpose-built for environments where moisture, washdowns, dust, and harsh operating conditions require a sealed, durable solution.
Using Far-UVC technology, Apex operates continuously to address airborne and surface-borne pathogens in occupied industrial environments without chemicals, noise, or disruption to operations.
Built for Tougher Conditions
Apex extends Visium’s continuous sanitization platform into environments where standard fixtures are not suitable.
.
-
Sealed, watertight enclosure for washdown and high-exposure areas
-
UL wet-location rated and IP65 rated
-
Durable fiberglass and aluminum construction
-
Standard 120–277V electrical connection
-
Coverage area: Up to 200 sq. ft. per fixture (application dependent)
-
Energy-efficient, low-wattage operation
Continuous. Autonomous. Low Maintenance.
Silent, automatic operation with simple control and upkeep.
.
- Continuous or web-based operation
- Scheduling options to match facility needs
- Field-replaceable Far-UVC lamp, no tools needed
- Optional connectivity for monitoring and control
Designed for Use in Occupied Spaces
Engineered and tested to meet established safety standards for Far-UVC systems used in occupied environments.
.
- Designed to comply with UL 8802 for UV germicidal equipment
- Complies with ACGIH exposure limits
Ideal Applications
Well suited for demanding environments requiring sealed, industrial-grade fixtures.
- Livestock and agricultural facilities
- Industrial manufacturing environments
- Cold storage, utility and washdown areas
At work in tough environments
Apex is already deployed in demanding, real-world environments where durability, washdown capability, and continuous operation matter.
From agricultural and livestock facilities to food handling and processing environments, organizations are incorporating Apex fixtures as part of their infrastructure to support cleaner air and surfaces in occupied spaces.
Plan your project with a complimentary Visium Blueprint Analysis.
Apex Specifications
Rugged Far-UVC for Demanding Environments
Apex is a sealed Far-UVC fixture intended for use in occupied industrial environments requiring watertight, rugged enclosure conditions. The system incorporates a field-replaceable lamp module and is designed for continuous operation in demanding settings.
Mechanical Size
• Size: 27.7” L x 6.8” W x 2.4” H
Mounting Options
• Surface Mounting
Environmental Ratings
• IP65 Rated
• UL Wet Location Rating
• 40°C Max Ambient Temperature
Housing Materials
• Fiberglass housing
• Aluminum cover with integrated fused silica lens
Electrical Ratings
• Fixture Input Power: 120-277V AC, 50/60 Hz
• Power Consumption: 14W
• Integral pass-through wiring for continuous runs
UV Emitter
o Ushio Care222 KrCl Excimer Lamp Module
o Peak Wavelength: 222nm with bandpass filter
o Lamp Lifetime > 10,000 hours
o Excimer lamp module is field replaceable
Fused Silica Lens
Connectivity
• 2.4 GHz Wi-Fi (802.11b/g/n) and Bluetooth to WiFi access point or mobile device
LED Indicator
• Displays lamp life status
• Displays WiFI and Bluetooth connectivity status
Control Logic
• Standalone Mode
• Connected Mode (WiFi or Bluetooth)
• Continuous – 24/7 operation
• Schedule – Active during customizable schedule
Certified to UL 8802
Standard for Ultraviolet (UV) Germicidal Equipment
Classified as Risk Exempt
Risk Group 0 under UL 8802 Photobiological Test
Complies with ACGIH Threshold Limit Values (TLV) for UV exposure
Manufactured at an EPA registered facility; EPA Facility Number: 102522-FL-1
Note: Safety Certifications are pending
